Screw Type Air Compressor Oil Injected Silent High Energy Saving
Stable And Durable
Advantages of screw air compressor:
1. High reliability: The screw air compressor has few parts and
wearing parts, reliable operation and long service life.
2. Simple and convenient operation and maintenance: gas can be
supplied according to the required displacement.
3. Good power balance: the screw air compressor has no unbalanced
inertial force, and the machine runs smoothly at high speed. It is
especially suitable for use as a mobile compressor, with small
size, light weight and small footprint.
4. Strong adaptability: The screw air compressor has the
characteristics of forced air delivery, the displacement is
basically not affected by the exhaust pressure, the operation is
stable, the vibration is small, and the exhaust is stable.
5. Multi-phase mixed transmission: There are gaps between the
rotors of the screw air compressor, which can withstand the impact
of liquid, and can also send out liquid-containing gas,
dust-containing gas, and polymerized gas under pressure.
6. The unit exhaust volume is small and occupies a small area.
Technical Parameters:
Model |
KW |
HP | Air Delivery (m³/min) |
Weight (KG) |
Dimension(mm) (L*W*H) |
Outlet Diameter |
Noise dB(A) |
| 7bar | 10bar | 13bar |
| LFS-10 | 7.5 | 10 | 1.15 | 1.0 | 0.8 | 240 | 920*650*900 | G3/4° | 65±2 |
| LFS-15 | 11 | 15 | 1.65 | 1.5 | 1.2 | 300 | 1100*750*1050 | G3/4° | 65±2 |
| LFS-20 | 15 | 20 | 2.35 | 1.8 | 1.65 | 340 | 1100*750*1050 | G3/4° | 65±2 |
| LFS-30 | 22 | 30 | 3.62 | 3.3 | 2.6 | 550 | 1350*870*1120 | G1° | 68±2 |
| LFS-40 | 30 | 40 | 5.0 | 4.2 | 3.6 | 580 | 1350*870*1120 | G1° | 68±2 |
| LFS-50 | 37 | 50 | 6.5 | 6.0 | 5.3 | 700 | 1500*1000*1300 | G11/2° | 70±2 |
| LFS-60 | 45 | 60 | 8.2 | 7.3 | 6.5 | 800 | 1500*1000*1300 | G11/2° | 70±2 |
| LFS-75 | 55 | 75 | 9.8 | 8.5 | 7.3 | 1200 | 1850*1300*1550 | DN65 | 72±2 |
| LFS-100 | 75 | 100 | 13.5 | 11.8 | 9.5 | 1500 | 1850*1300*1550 | DN65 | 72±2 |
| LFS-120 | 90 | 120 | 15.5 | 13.5 | 12.1 | 1850 | 2350*1650*1800 | DN65 | 75±2 |
| LFS-150 | 110 | 150 | 19.7 | 17.6 | 15.2 | 1900 | 2600*1650*1800 | DN65 | 75±2 |
| LFS-175 | 132 | 175 | 23.2 | 21.3 | 19.5 | 2600 | 2600*1650*1800 | DN80 | 78±2 |
| LFS-200 | 160 | 200 | 25.5 | 22.5 | 20.1 | 2800 | 2800*1898*1695 | DN80 | 82±2 |
| LFS-250 | 185 | 250 | 30.1 | 27.3 | 25.2 | 3500 | 3100*2150*2000 | DN100 | 82±2 |
| LFS-300 | 220 | 300 | 40 | 36.8 | 29.5 | 4500 | 3100*2150*2000 | DN100 | 82±2 |
Machine Details:
1.Control Panel
Advanced microcomputer PLC fully automatic programmable, protection
device control system. English control system, easy to operate, can
work automatically 24 hours without supervision.
2.Efficient Screw Airend
High-precision twin-screw rotor, triple-glazed, less wearing parts,
compact structure, large air delivery, high stability.
3.Full Copper Core High Efficiency Motor
High-performance motor, insulation class F, heavy-duty bearings,
3~5% higher efficiency than similar products.
4.Intake Valve
The air intake valve can automatically adjust the air volume from 0
to 100% according to the requirements of the system air volume, and
the pressure loss is small.

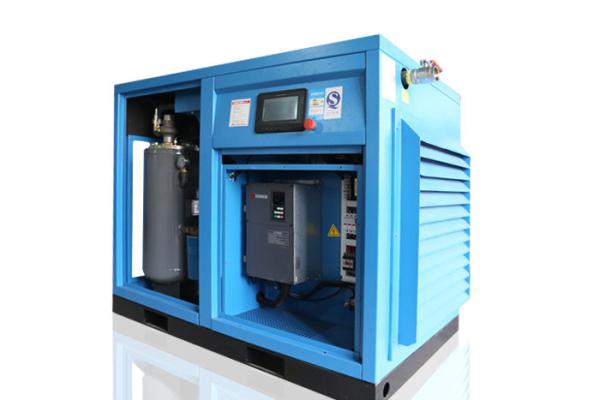

Machine Image:
Factory & Warehouse Overview:
Main products:
•Rotary Screw Air Compressor(7.5KW~220KW)
•PM VSD Screw Air Compressor(7.5KW~160KW)
•Combined Screw Air Compressor System for Laser
cutting(7.5KW,11KW,15KW)
•Two Stage PM VSD Screw Air Compressor(15KW~200KW)
•Low Pressure PM VSD Screw Air Compressor(7.5KW~132KW)
•Medium Pressure PM VSD Screw Air Compressor(11KW~250KW)
•Oil Free Water Lubrication Screw Air Compressor(7.5KW~250KW)
Recommmded Products in LTC Compressor:
Maintanence Details:
How long does the air compressor need to be maintained?
1. 500 hours: When the air compressor runs for 500 hours, the oil
filter element and air compressor lubricating oil should be changed
for the first time after the new machine is used. Remove the air
filter for cleaning and blow it out from the inside out with low
pressure compressed air. Do not blow air from the outside to the
inside to avoid clogging.
2. 2000 hours: When the air compressor runs for 2000 hours, check
whether the pipe joints, bolts and terminal screws are loose, and
tighten them if any. Replace the "three filters and one oil". Check
all solenoid valves and whether the protection differential
pressure switches operate normally.
