Silent Screw Air Compressor Air Tank Mounted 10HP 15HP 20HP PM VSD For Fiber Laser Cutting

Screw air compressors are mainly composed of screw airend, power system (electric motor or diesel engine), pressure vessel, electric control system, cooling system, etc. Among them, the screw airend is the core component of the air compressor, and its performance directly determines the overall performance, machine performance level and product quality.

The technical core position of the screw airend is mainly reflected in the design level, material quality and processing technology of the rotor. The screw rotor is the core component of the screw airend and the core component of the air compressor. The quality of the screw rotor material and the accuracy of the processing technology will directly affect the efficiency, noise and reliability of the screw airend, so the air compressor industry has very strict requirements for its production and processing.

LTC Compressor is committed to industrial air compressing solutions. The products are sold to more than 50 countries worldwide and widely applied to laser cutting, food, pharmaceutical, textile, medical, cement, and other industries.

Machine Specs&Details:

1.Intelligent PLC Control System
Realize the remote control of the screw compressor.

2.Efficient Screw Airend
High-precision twin-screw rotor, triple-glazed, less wearing parts, compact structure, large air delivery, high stability.
HANBELL or BAOSI brands are available, both high quality air end in China.

3.High-Precision Filters
Ensure clean air, prolong the life of the screw airend, extend maintenance cycle.

4.Air Receiver Tank
Large capacity, energy saving, thickened material, cushioning, cooling, water removal, pressure stabilization.

Technical Parameters:

Advantages of Permanent Magnet Motor Variable Frequency Screw Air Compressor:

Advantages of permanent magnet variable frequency air compressor:

1. Reduce impact, reliable operation

The permanent magnet frequency conversion air compressor starts smoothly and avoids the current peak value. After the start-up operation reaches the rated pressure, the frequency conversion operation is carried out, and the gas production is tracked by steplessly variable speed through pressure detection. The power consumption also avoids the impact of star-delta starting on the power grid and air compressor.

2. Constant voltage and power saving

When the ordinary air compressor is running, the pressure has been fluctuating within the range of 0.7 bar above and below the rated pressure. Compared with the frequency conversion air compressor, the pressure can be stabilized within the range of 0.1 bar above and below the rated pressure. During normal operation, 8.4% power consumption can be saved (7% more power consumption per 1 bar increase in operating pressure). Especially in the unloading operation, the frequency conversion air compressor saves up to 45% of the power consumption compared with the ordinary air compressor. At the same time, the quality of air supply is improved, and the reliability and life of air compressors and air equipment are improved.

3. The voltage adaptability of the AC power supply is strong

Due to the overmodulation technology adopted by the frequency converter, it can still output enough torque to drive the motor when the AC power supply is slightly low; when the voltage is slightly high, it will not cause the voltage of the output motor to be too high.

4. Low noise

Most of the working conditions of the frequency conversion system work at lower than the rated speed, the mechanical noise and wear of the main engine are reduced, and the maintenance and service life are extended;

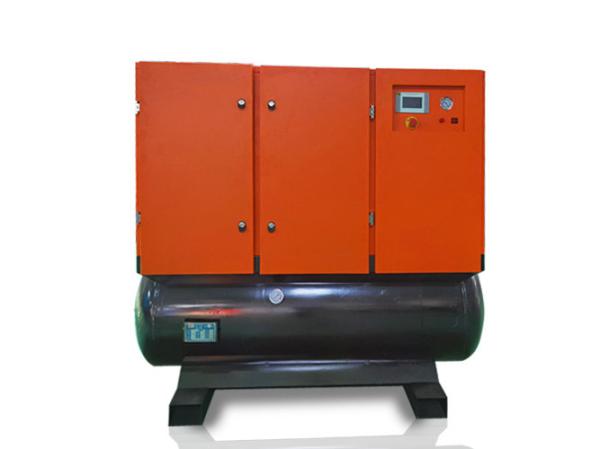

Machine Image:

FAQ

1.Why customer choose us?
Shanghai LTC Compressor Co., Ltd specializes in Rotary Screw Air Compressor, integrating R&D, production, sales and service. High-level quality control and years of exporting experience help us win trust and loyalty of our customers around the world. Warmly welcome your inquiries and orders for quality test, more favorable sales conditions will be provided to support you expand local market if long-term partnership can be established.

2.Are you a manufacturer or trading company?
We are a professional manufacturer in China with over 25 years experience in air compressing solutions. We have 2 factories in Shenzhen, and our overseas business department is in Minhang district , Shanghai. OEM&ODM service is accepted.

3.What’s your delivery time?
For standard machines, we can deliver within 3-5 days. For customized machines or urgent orders, please contact our sales in advance.

4.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable parts such as air filter, oil filter, oil separator and precise filter elements.

5.How does your factory do regarding quality control?
International leading processing equipment and advanced manufacturing technology ensure LTC screw compressor with high efficiency, low noise, low power consumption, high reliability.

6.How long is the lifespan of your air compressor?
Generally, more than 10 years.

7. What's price term?
FOB, CIF, EXW, all are available, according to your requirements.
We have long-term cooperative shipping agent in sea shipping, much more professional and can help you save shipping cost.

8. What's payment term?
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

9.How about your after-sales service?
(1) Installation and commissioning online instructions.
(2) Well-trained engineers available for overseas service.
(3) Worldwide agents and after-sales service available.

Shanghai LTC Compressor Co., Ltd is a professional provider of comprehensive solution in air compressing industry, integrating R&D, production, sales and service.

Main products of LTC Compressor: Rotary Screw Air Compressor, PM VSD Screw Air Compressor, Combined Screw Air Compressor System for Laser cutting, Two Stage PM VSD Screw Air Compressor, Low Pressure PM VSD Screw Air Compressor, Medium Pressure Screw Air Compressor. Oil Free Water Lubricated Screw Air Compressor, etc.

LTC Compressor is committed to industrial air compressing solutions. The products are sold to more than 50 countries worldwide and widely applied to laser cutting, blow molding, drilling, food, medical, pharmaceutical, textile, cement, environment protection and other industries.

LTC Compressor has established a team with rich experience in customer service and technical assistance, which can provide faster and better after-sales services.
